Design Plan # 117.8 Architectural Essential Information pack
Overview
The 117.8 is a modern ranch house design that balances functionality and style within a compact footprint. Ideal for new home builders and tradesmen, this architectural information pack provides essential details for bidding and quoting purposes.
Special Note
Please note: This information pack does not include full construction plans. It is intended for preliminary planning and quotation purposes only. Complete construction documents must be obtained separately from a licensed architect or designer.
Information pack Includes
* 3d Front facade

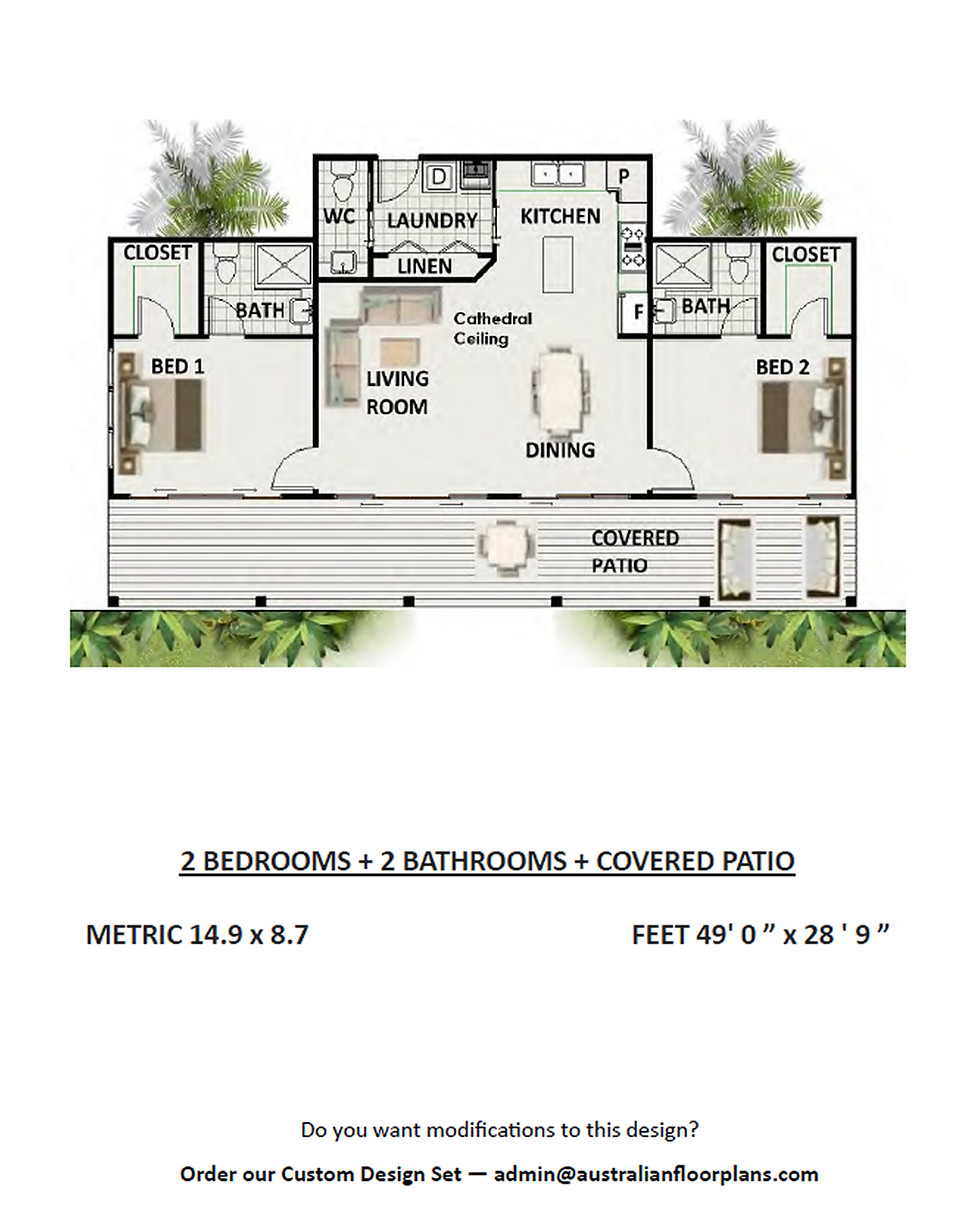

* Floor plan layout
* kitchen photo
* Room sizes in feet and inches
* Area sizes In feet and inches
* Room Sizes In metric
* Area sizes in metric
* Copyright Release for you to build this design
* Discounted Opton to upgrade to full blueprints
Also Includes our
An Insight In How To Manage Your Own Home Construction
Table of Contents
Introduction
Chapter 1. Owner Builder vs Hiring a builder
Chapter 2. DIY Building vs Project Managing
Chapter 3. Land Selection
Chapter 4. Finance
Chapter 5. Colour Selection – Interior Design Tips
Chapter 6. Preliminaries-the first stage of construction
Chapter 7. Slab or Base Stage of construction
Chapter 8. Plumbing and Drainage tips to Manage the plumber
Chapter 9. Electrical tips to Manage the electrician
Chapter 10. House Frame Stage tips to Manage the carpenter
Chapter 11. Lock up stage - what to look for
Chapter 12. Fix out stage - what to look for
Chapter 13. Completion - what to look for
Chapter 14. People involved in the construction
Room Sizes Feet & Inches
Bed 1: 10' 10” x 10 ' 10”
Bed 2: 10' 10” x 10 ' 1”
Living Area: 21' 4” x 18 ' 9”
Areas Feet & Inches
Living: 1314 Sq. Ft
Veranda: 214 Sq. Ft
Deck: 128 Sq. Ft
Total Area: 1656 Sq. Ft

Room Sizes Feet & Inches
Bed 1: 13' 0 ” x 9 ' 9 ”
Bed 2: 13' 0 ” x 9 ' 9 ”
Living Area: 21' 7 ” x 12 ' 9 ”

Areas Feet & Inches
Living: 931 Sq. Ft
Pa􀆟o: 338 Sq. Ft
Total Area: 1269 Sq. Ft

Metric Room Sizes
Bed1: 4.0 x 3.0
Bed2: 4.0 x 3.0
Living Room: 6.5 x 3.9

Metric Area Sizes
Living: 86.5 m2
Pa􀆟o: 31.4 m2
Total Area: 117.8 m2

FEATURES
· 2 Bedrooms
· 2 Walk In Closets
· 2 Bathrooms with Showers
· Open Plan Living / Dining
· Cathedral Ceiling to Living
· Covered Patio
